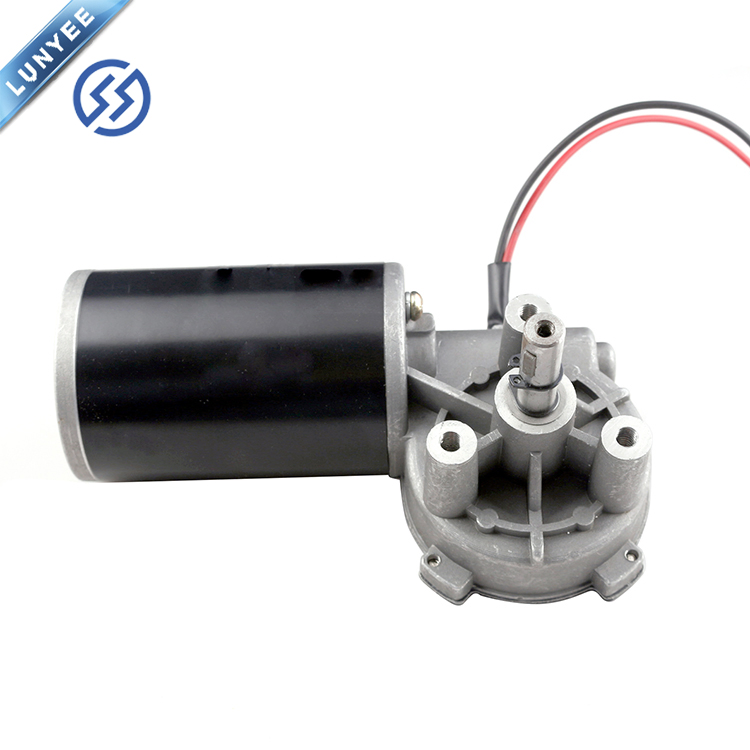

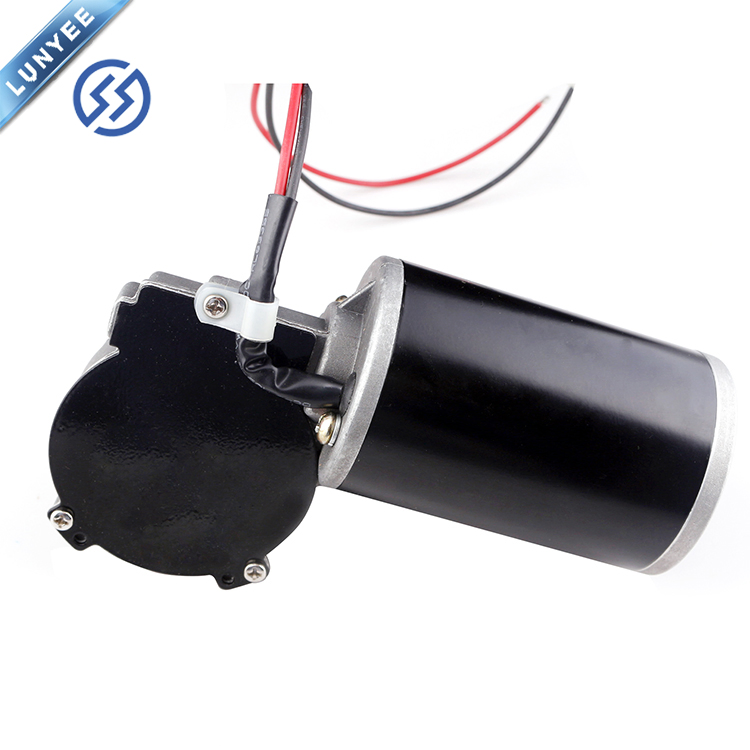

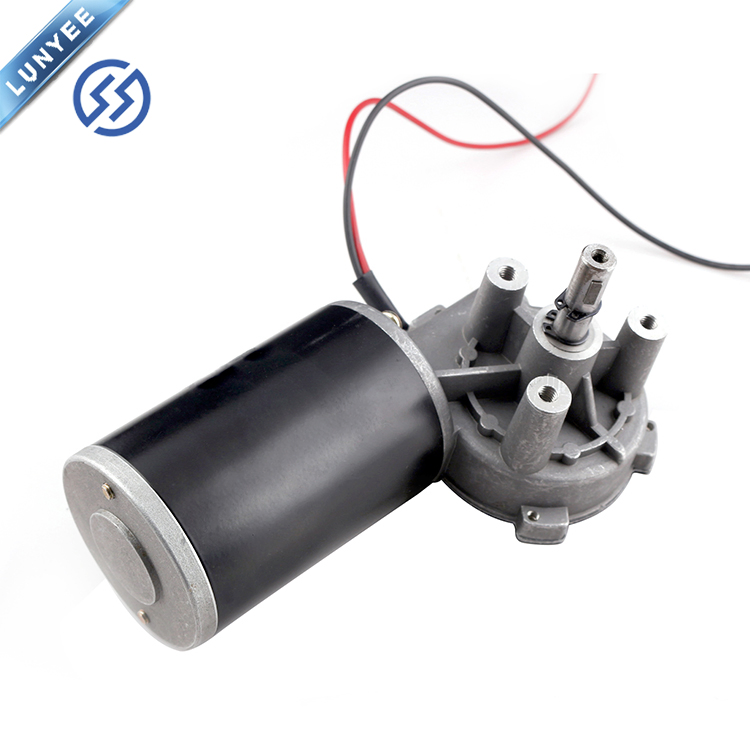

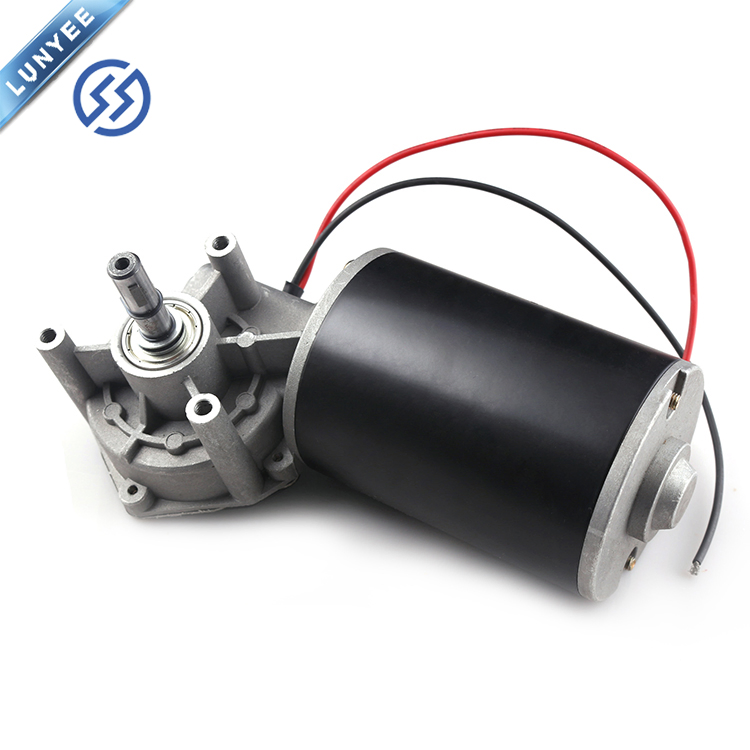

High Torque 24volt PMDC Electric Sliding Gate Motor / Garage Door Opener

1 / 5

High Torque 24volt PMDC Electric Sliding Gate Motor / Garage Door Opener

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info

Model NO. LY

Excitation Mode PMDC

Function Control, Driving

Casing Protection Protection Type

Number of Poles 4

Structure and Working Principle Brush

Type Worm Gear Motor

Certification CE

Motor Type Garage Door Opener

Motor Diameter 49/59/63/76/88/110mm

Voltage 12V/24V/42V/48V/Customized

Speed 15rpm~260rpm

Overall Length 56/71/77/80/85/88/97mm

Power 10W-120W

Transport Package Carton

Specification Customized

Origin Jiangsu

HS Code 850131

Production Capacity 80000pieces/Month

Product Description

High Torque 24volt PMDC Electric Sliding Gate Motor / Garage Door Opener

Product Parameters

Motor Type	Brushed PMDC Worm Gear Motor
Motor Diameter	49mm/59mm/63mm/76mm/88mm/110mm
Rated Voltage	12V/24V/42V/48VDC
Rated Power	10W/15W/20W/25W/30W/45W/65W/95W/120W/150W/180W
Rated Speed	15RPM/30RPM/60RPM/80RPM/120RPM/150RPM/180RPM/200RPM/220RPM
Rated Torque	3.5N.m~8N.m
Mounting Size	50.8mm/72mm
Output Shaft Size	6mm/8mm/10mm/12mm/14mm(customized)
Optional Configuration	Hall Sensor/Photoelectric Encoder/Photoelectric Switch
Usage	Height adjustable table, automatic drying rack, vending machine, food processor blender machine.

Photo Details

Left Side View

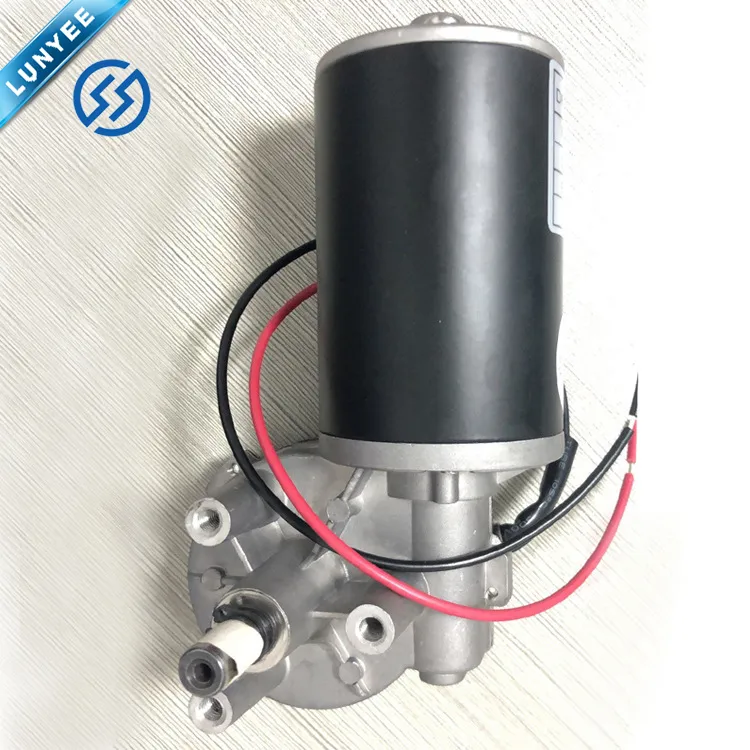

PMDC Electric Sliding Gate Motor Left View 1

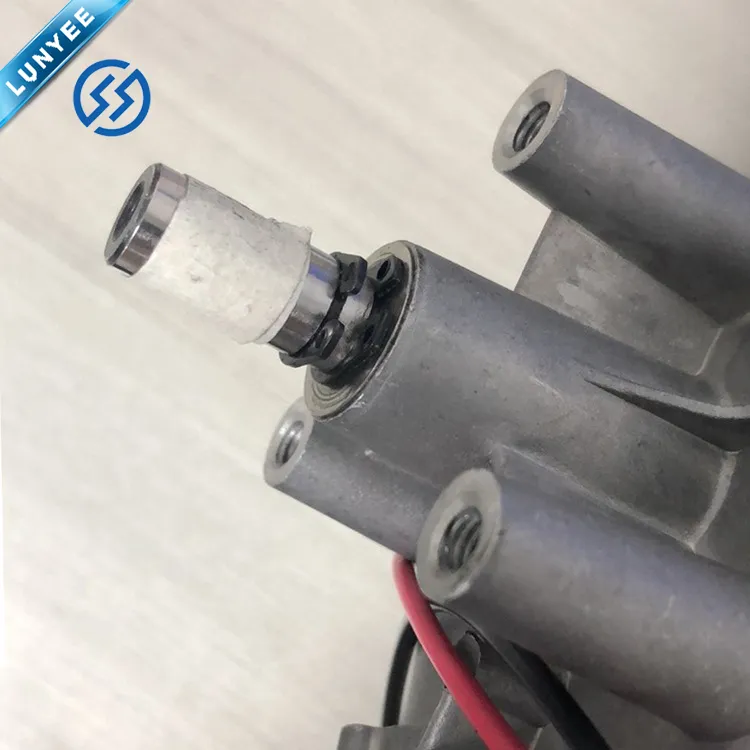

PMDC Electric Sliding Gate Motor Left View 2

Right Side View

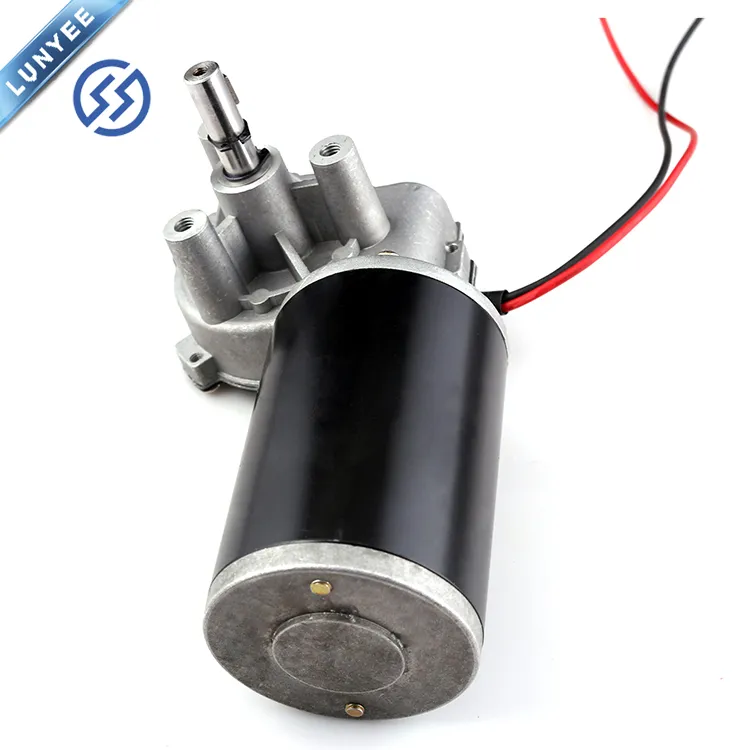

PMDC Electric Sliding Gate Motor Right View 1

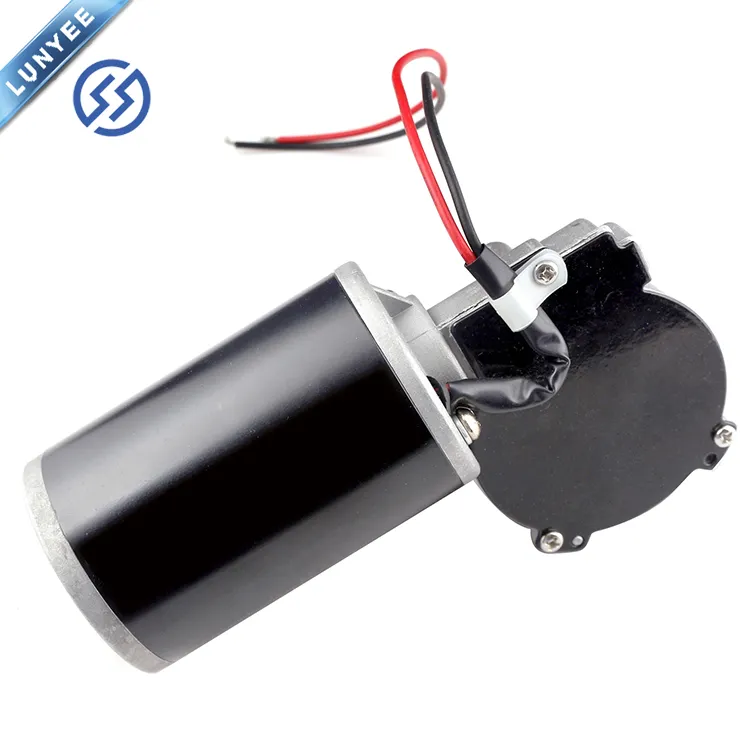

PMDC Electric Sliding Gate Motor Right View 2

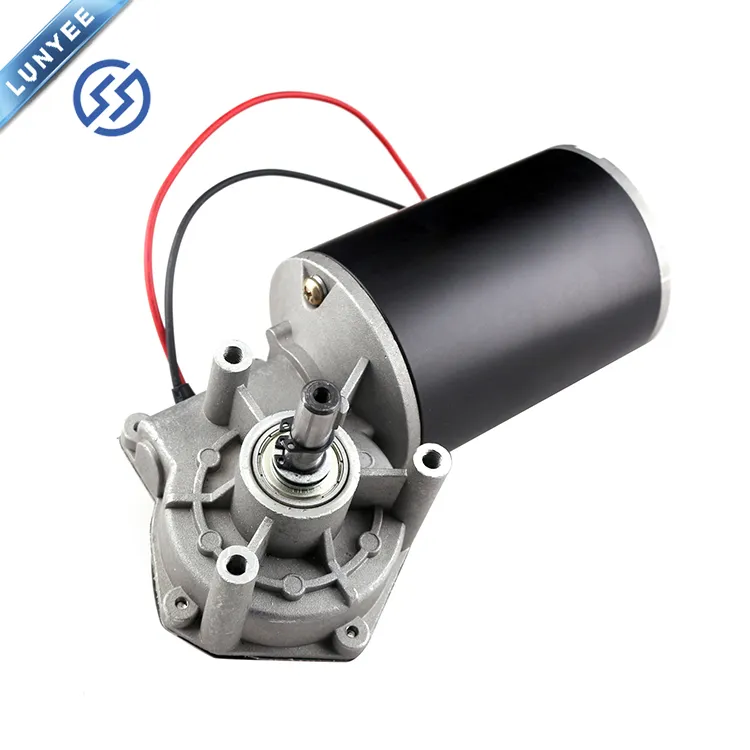

PMDC Electric Sliding Gate Motor Right View 3

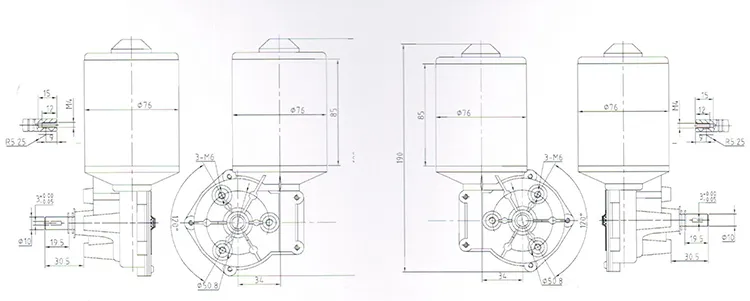

PMDC Electric Sliding Gate Motor Specifications

Application

Production Quality & Facilities

Packaging and Shipping

Worm Gear Motor Export Packaging and Logistics

Related Products

Frequently Asked Questions

Q How long can I get my production after payment?

We would deliver within 7~10 days after payment confirmation.

Q How do we select models and specifications?

You can contact us with the series code as well as requirement details, such as motor power, output speed or ratio, service factor or your specific application requirements. Providing pictures or drawings is highly recommended for faster verification.

Q What are your before-sales and after-sales services?

Before-sales: Technical support for installation; strict quality control system; customized production options.
After-sales: Free maintenance within a 12-month guarantee period; professional technical solutions provided during operations.

Q How much is the freight and what is the mode of transportation?

1. The freight cost is determined by the total weight of the order and the shipment distance.
2. Available modes of transportation include EMS, DHL, FedEx, TNT, and other reliable shipping lines.

Q Can this PMDC motor support customized shaft sizes and configurations?

Yes, we offer fully customized output shaft sizes (such as 6mm, 8mm, 10mm, 12mm, 14mm) and optional configurations including Hall sensors, photoelectric encoders, or photoelectric switches to match your specific application requirements.

Q What typical applications is this worm gear motor suitable for?

This high-torque brushed PMDC worm gear motor is widely used in automatic sliding gates, garage door openers, height-adjustable desks, automatic drying racks, vending machines, and food processor blenders.
