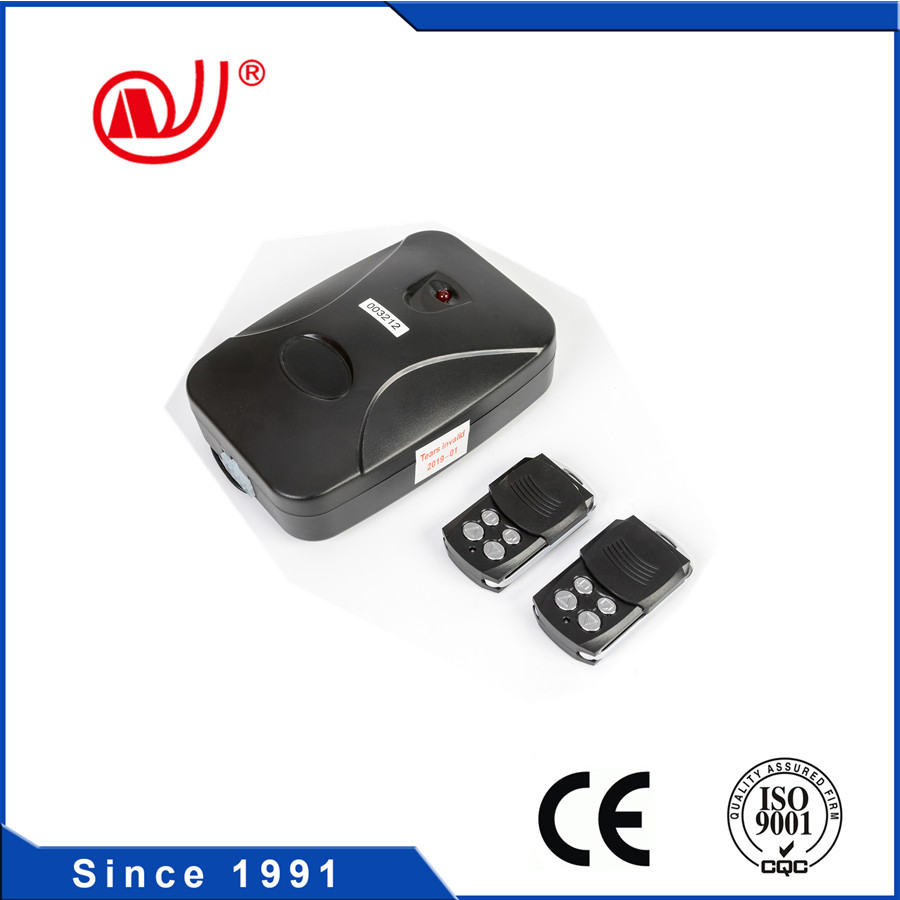

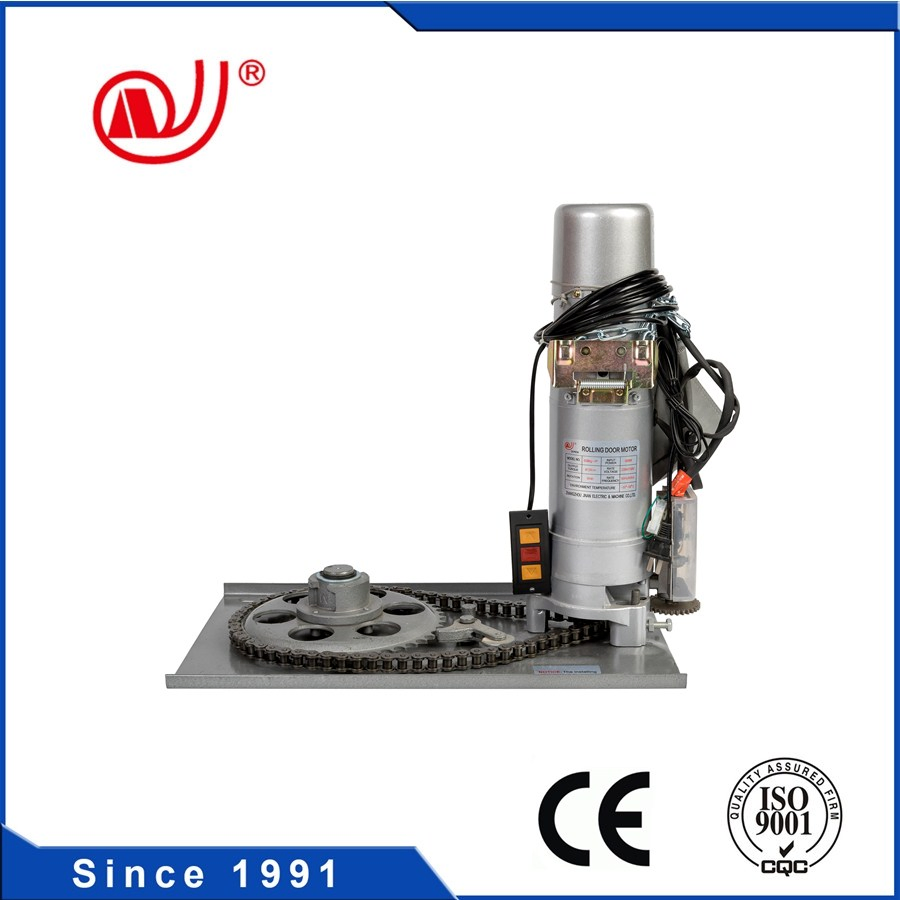

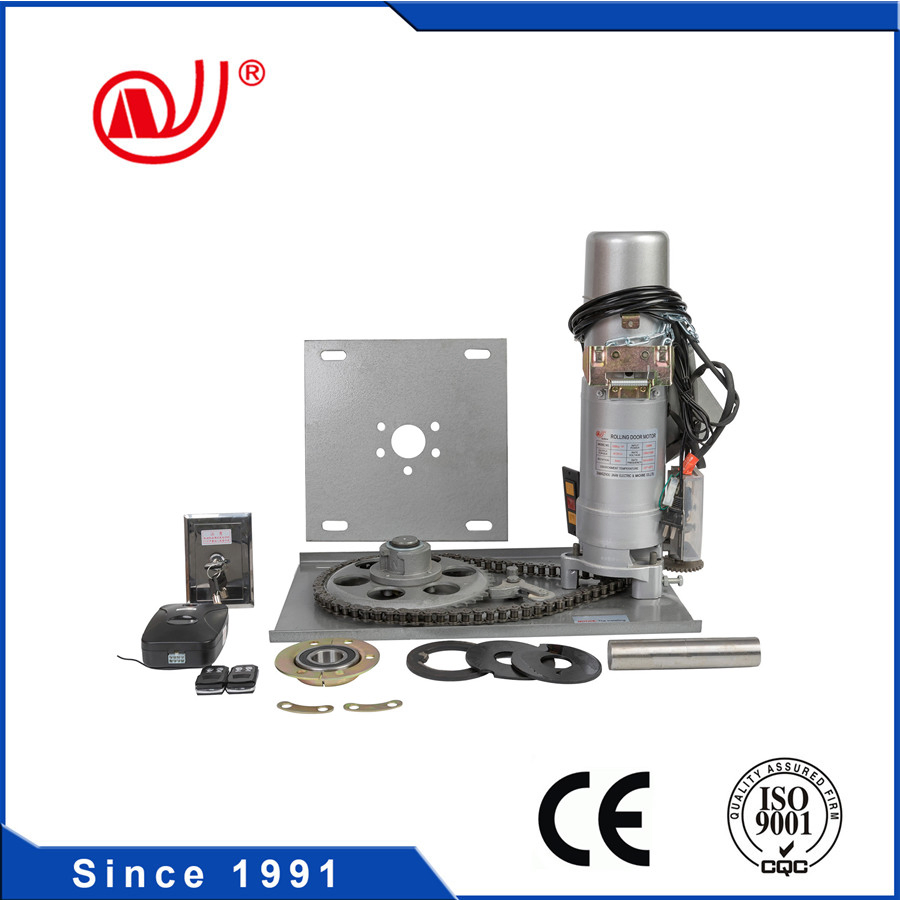

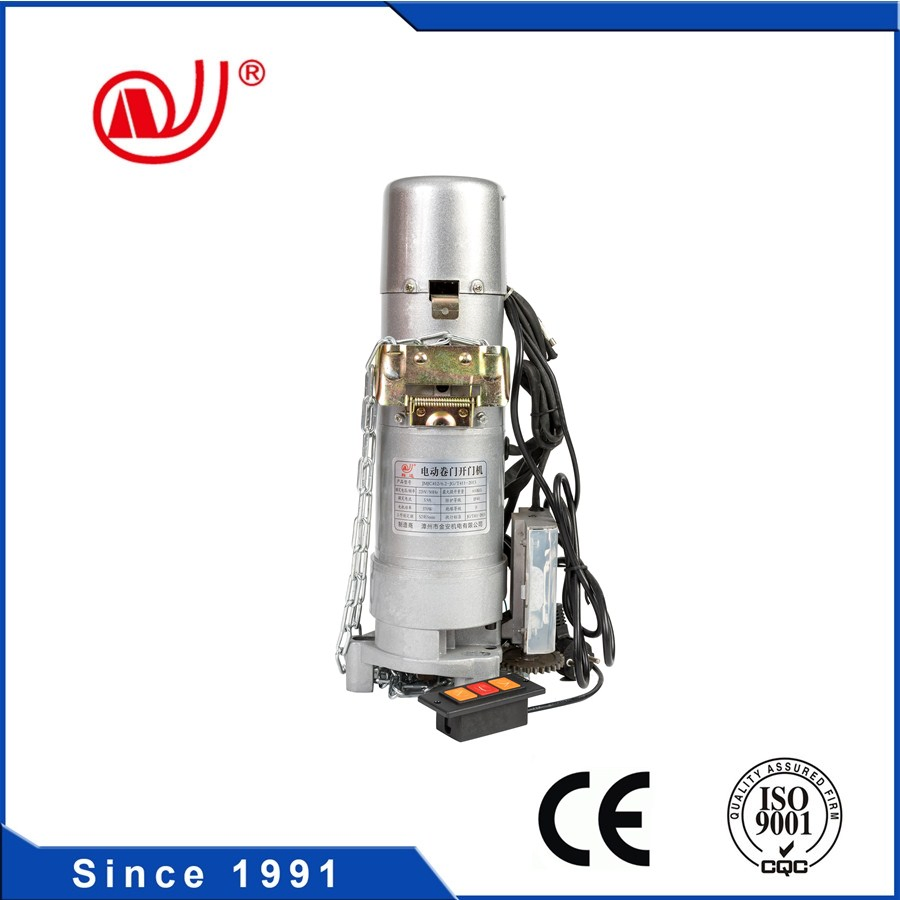

Remote Control AC Side Motor Rolling Door Motor Roller Shutter Motor 600kg

1 / 5

Remote Control AC Side Motor Rolling Door Motor Roller Shutter Motor 600kg

Send Inquiry

Product Description

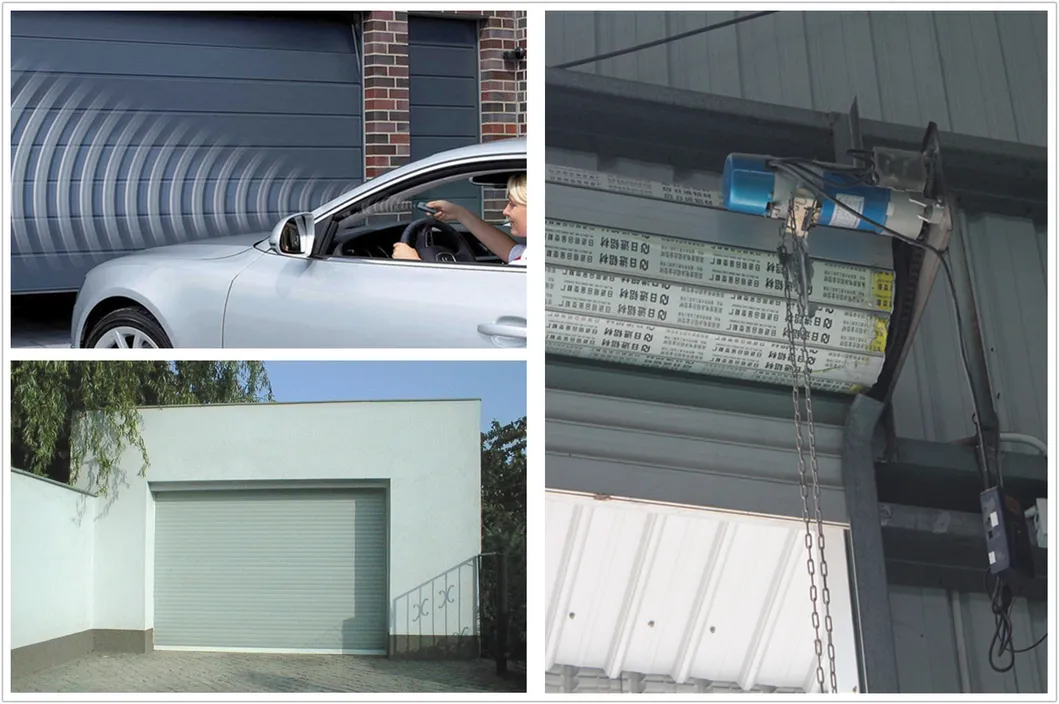

Application Area

Our motors are applied to shopping centers, warehouses, garages, theaters, hotels, banks, factories, and other buildings' rolling shutter doors' opening and closing with electric and manual functions.

Product Features

Shell: Aluminium alloy, solid and light but durable and easy to install.

Gearbox: High-quality alloy steel and special technical treatment to guarantee big lifting power.

Brake structure: Special device mechanical brakes, power cut off in an instant the brakes, to ensure absolute safety.

Transmission System: High accuracy, smooth running, and low noise.

Technical Parameters

Model No.	Max Lifting Weight (kg)	Max Lifting Height (m)	Rated Input Power (W)	Output Torque (N.m)	Big reel Sprocket Rotation (r/min)	Chain No.
220V/50HZ
AC300KG-1P	300	6.5	450	168	6.2	10A
AC500KG-1P	500	6.5	450	343	6.2	10A
AC600KG-1P	600	6.5	680	412	6.2	10A
AC800KG-1P	800	7	700	607	4.2	10A
AC1000KG-1P	1000	7	700	1102	3.5	12A
380V/50HZ
AC1000KG-3P	1000	8	400	1102	6.5	12A
AC1300KG-3P	1300	8	600	1372	6.5	12A
AC1500KG-3P	1500	8	600	1610	5.7	12A
AC2000KG-3P	2000	8	700	2200	5.7	12A

🛡️ 4 Relays: To make motors work more stable with significant lifting power.
⚡ 100% Copper: Wiring ensures larger capacity, stable current, and durability. (Aluminum option available).
⚙️ 4 Micro Switches: In limit utensil for correct control and easy operation.
⚠️ Anti-dropping Device: Integrated in bracket board to prevent accidental injury and ensure safety.
🛠️ Customization: Motors can be customized based on specific requirements.

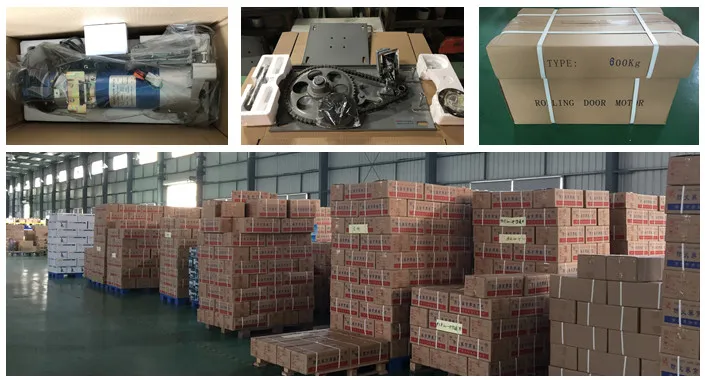

Packing & Delivery

📦 Packing: One set in two cartons, plastic bag inside, carton outside. Customized printing available.

🚢 Loading Capacity: A 20 GP container holds approx 520-550 PCS AC motors or 480-520 PCS DC motors.

📅 Delivery Time: 10-45 days after receiving deposit, depending on quantity and requirements.

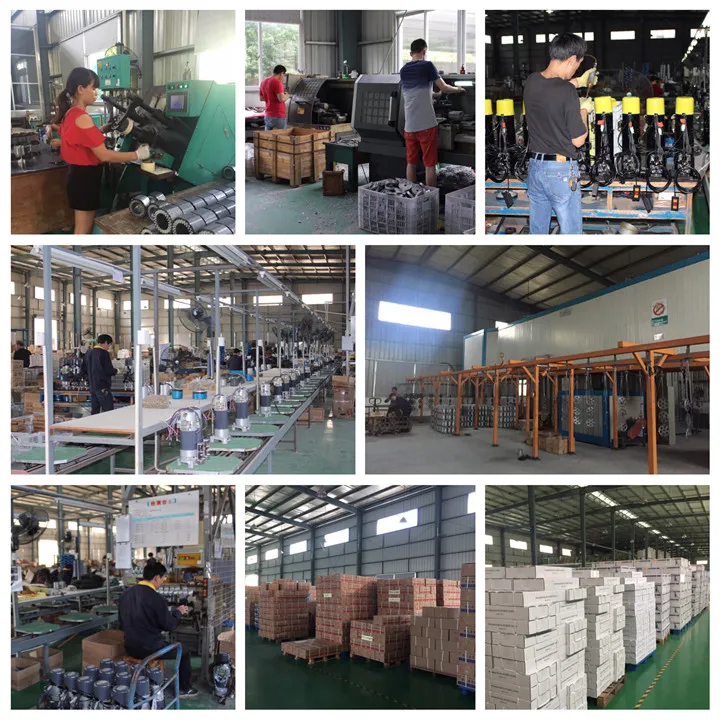

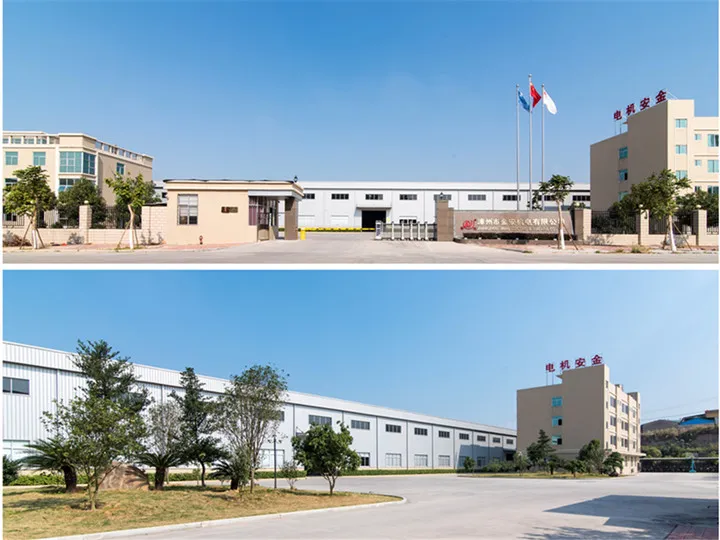

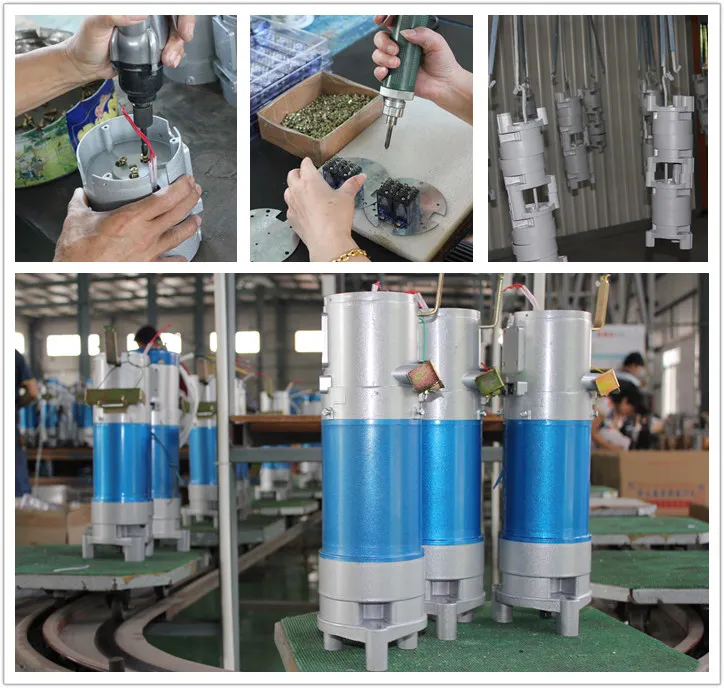

Manufacturing Facilities

Specializing in developing and producing all kinds of rolling door motors for more than 20 years with CE and ISO9001:2008 approval. Utilizing advanced technology to ensure elegant design, stable quality, quiet running, and easy installation. Facilities include automatic spray-painting lines, testing lines, and large-scale warehouses.

Exhibitions

Certificates

All motors are CE and ISO9001 certificated.

Related Products

Available options include AC (300KG to 2000KG) and DC (300KG, 500KG, 600KG) models.

Frequently Asked Questions

Q1: What are the main applications for these rolling door motors? A: These motors are ideal for shopping centers, warehouses, garages, theaters, hotels, banks, and factories to automate rolling shutter doors.

Q2: What materials are used in the motor's construction? A: We use high-quality aluminium alloy for the shell, alloy steel for the gearbox, and 100% copper wiring for maximum durability and capacity.

Q3: Are there safety features included? A: Yes, each unit includes a special mechanical brake for instant power cutoff and an anti-dropping device in the bracket board to ensure safety.

Q4: How many units can a standard 20 GP container hold? A: A 20 GP container can hold approximately 520-550 pieces of AC motors or 480-520 pieces of DC motors.

Q5: What is the typical lead time for delivery? A: Delivery usually takes between 10 to 45 days after receiving the deposit, depending on the order quantity and specific requirements.

Q6: Can the motors be customized? A: Yes, we offer customization for the motors based on your technical requirements and can also customize the packaging and logo printing.
