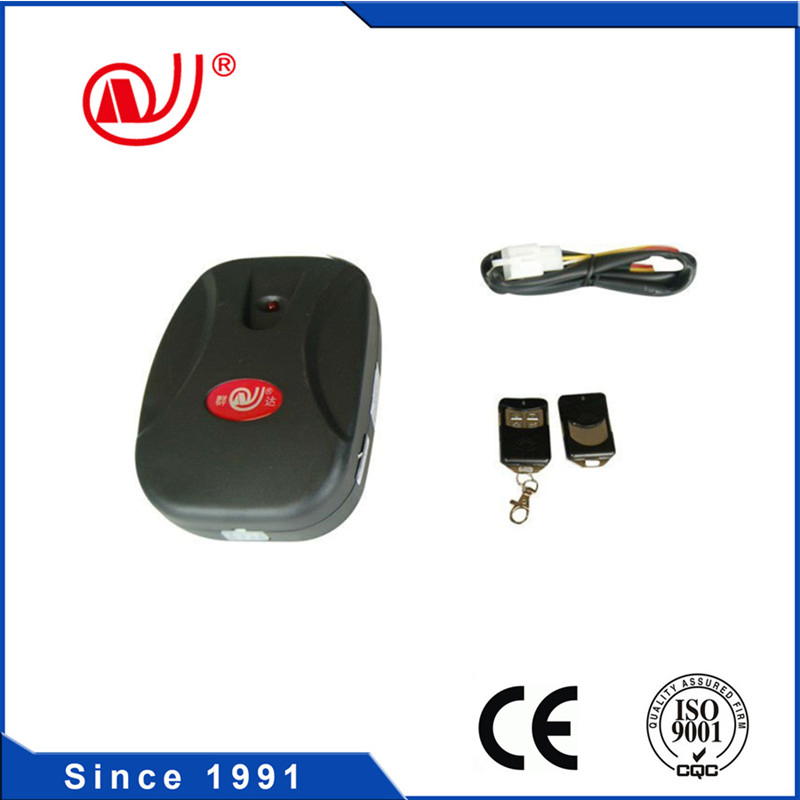

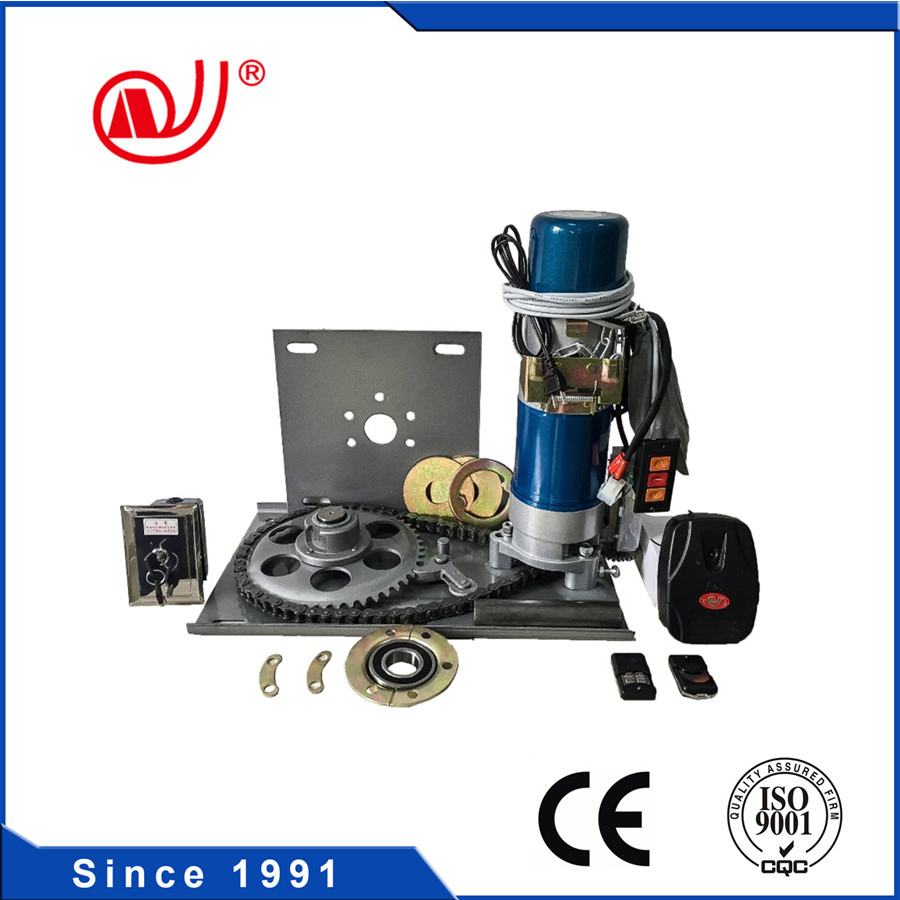

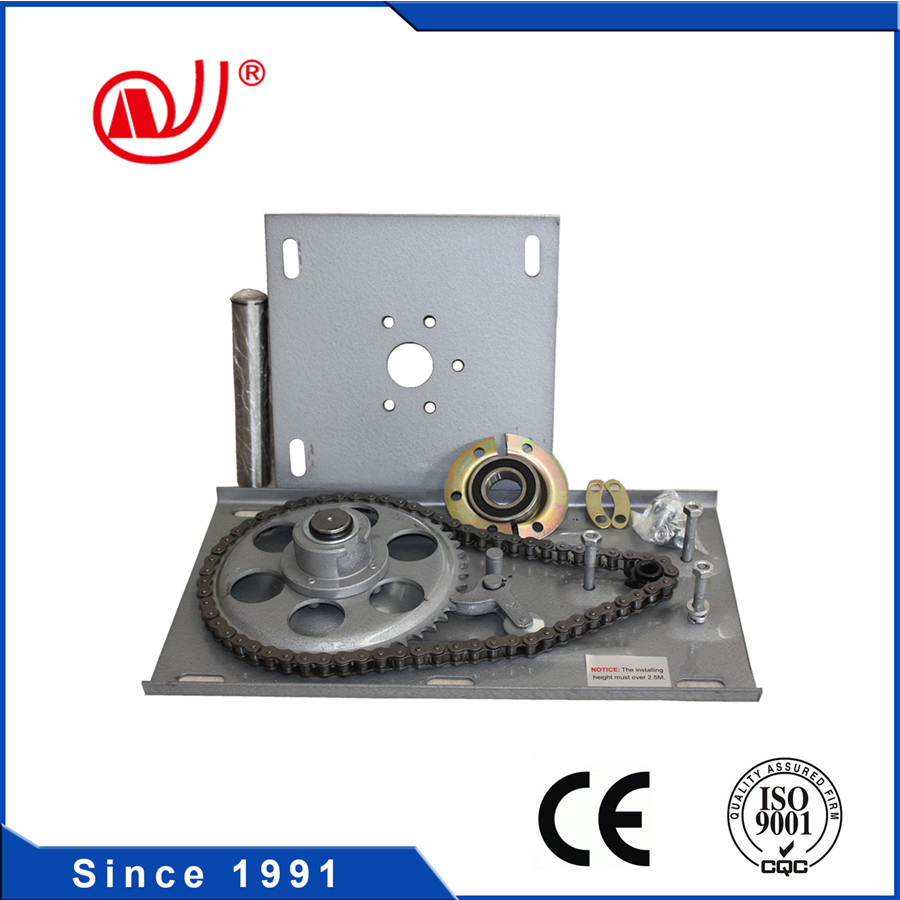

Rolling Door Motor Roller Shutter Motor with Remote Control for Roll up Door

📋

Basic Specifications

Model NO.

AC300KG-1P

Open Style

Rolling

Opening Type

With Remote Control

Special Function

Security

Color

Blue, Grey, Customized

Certification

CCC, ISO9001, CE

Position

Commercial, Industrial, Residential

Lifting Capacity

300kg

Max. Lifting Height

6.5m

Voltage

220V±10%

Production Capacity

12000 sets/Month

🏗️

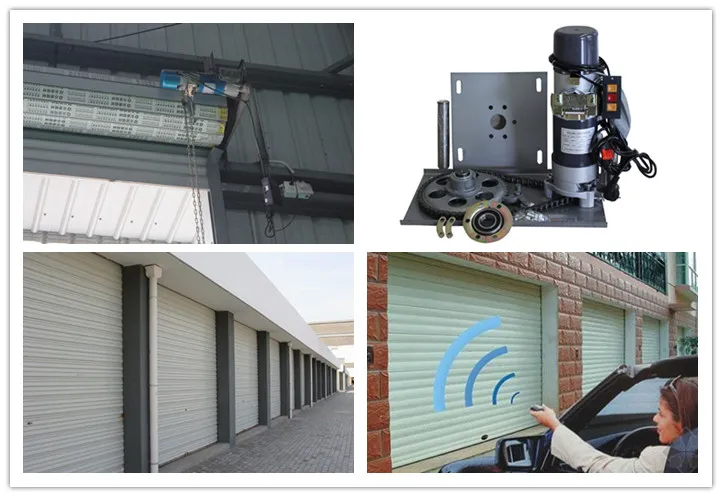

Application Area

Our motors are applied to shopping centers, warehouses, garages, theaters, hotels, banks, factories, and other buildings' rolling shutter doors' opening and closing with electric and manual functions.

⭐

Product Features

Shell: Aluminium alloy, solid and light but durable and easy to install.
Gearbox: High-quality alloy steel and special technical treatment to guarantee big lifting power.
Brake Structure: Special device mechanical brakes, power cut off in an instant to ensure absolute safety.
Transmission System: High accuracy, smooth running, and low noise.
Relays: 4 relays to make motors work more stable with significant lifting power.
Wiring: 100% copper wiring ensures larger capacity, stable current, and durability.

📊

Technical Parameters

Model No.	Max Lifting Weight (kg)	Max Lifting Height (m)	Rated Power (W)	Output Torque (N.m)	Rotation (r/min)	Chain No.
220V/50HZ
AC300KG-1P	300	6.5	450	168	6.2	10A
AC500KG-1P	500	6.5	450	343	6.2	10A
AC600KG-1P	600	6.5	680	412	6.2	10A
AC800KG-1P	800	7	700	607	4.2	10A
AC1000KG-1P	1000	7	700	1102	3.5	12A
380V/50HZ
AC1000KG-3P	1000	8	400	1102	6.5	12A
AC1300KG-3P	1300	8	600	1372	6.5	12A
AC1500KG-3P	1500	8	600	1610	5.7	12A
AC2000KG-3P	2000	8	700	2200	5.7	12A

📦

Packing & Delivery

Packing: One set in two cartons, plastic bag inside, carton outside. Customization of logo and design is available.

Loading Capacity: A 20 GP container holds approx 520-550 PCS AC motors (480-520 PCS for DC motors).

Delivery Time: 10-45 days after deposit, depending on quantity and requirements.

🏭

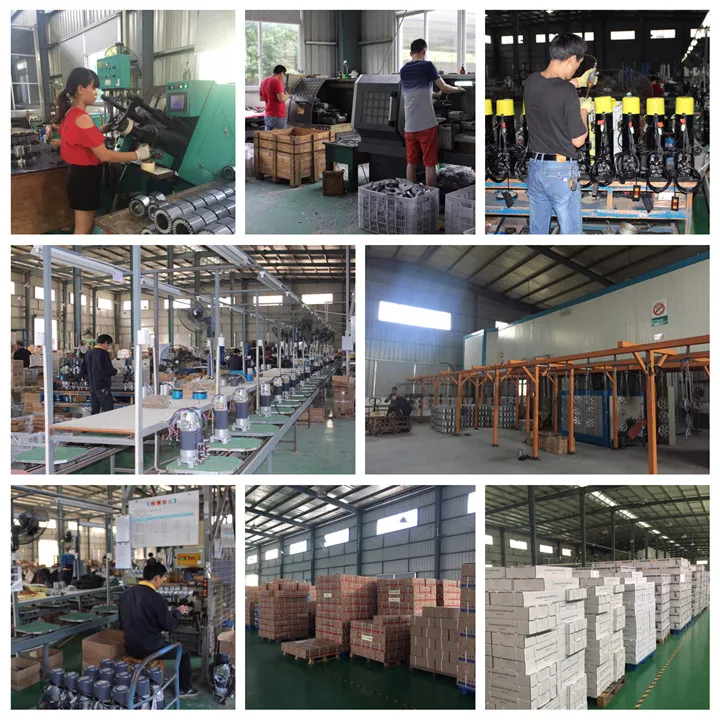

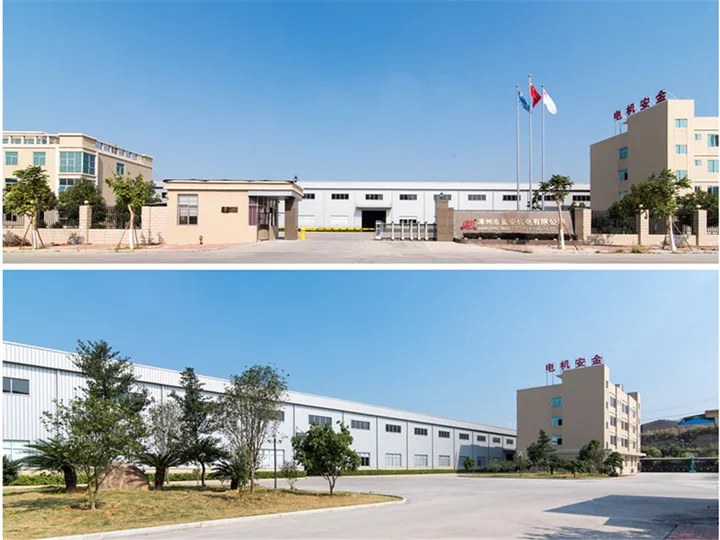

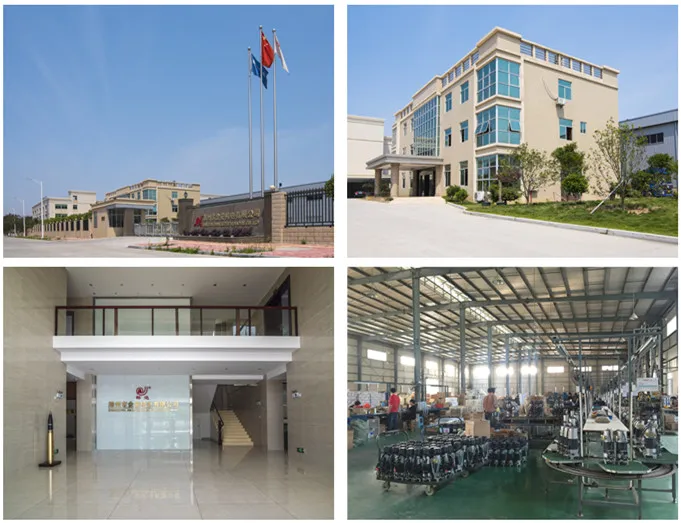

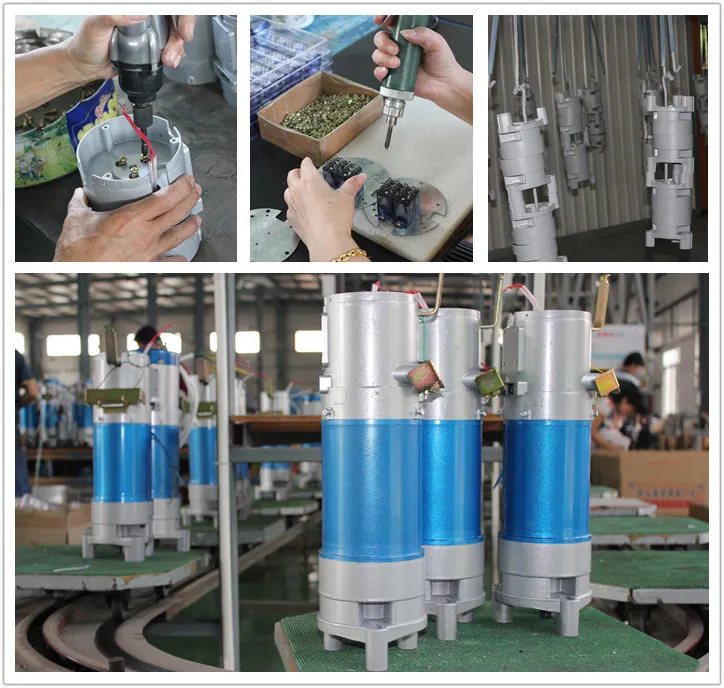

Factory & Production

Specializing in developing and producing all kinds of rolling door motors for more than 20 years. Quality is ensured through strict control and advanced technology.

📜

Exhibitions & Certificates

🔗

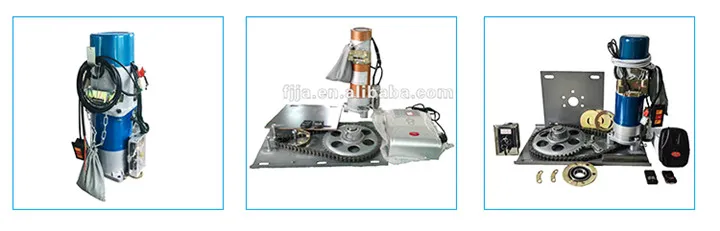

Related Products

Full range available: AC 300KG to 2000KG and DC 300KG to 600KG for various options.

❓

Frequently Asked Questions

Q1: What is the maximum lifting capacity of the AC300KG motor? A: The AC300KG-1P model is designed for a maximum lifting weight of 300kg and a maximum height of 6.5 meters.

Q2: Can the motor be operated manually during a power failure? A: Yes, our motors include both electric and manual functions for reliable opening and closing under any circumstances.

Q3: Are these motors suitable for industrial environments? A: Absolutely. They are suitable for commercial, industrial, and residential buildings including warehouses and factories.

Q4: What certifications do the rolling door motors have? A: All our motors are certified with CE, ISO9001:2008, and CCC to ensure high quality and safety standards.

Q5: How are the products packaged for international shipping? A: Each set is packed in two cartons with a plastic bag inside. The outer cartons can be customized with your logo or design.

Q6: What is the lead time for a bulk order? A: Depending on the specific quantity and requirements, delivery typically takes between 10 to 45 days after receiving the deposit.
